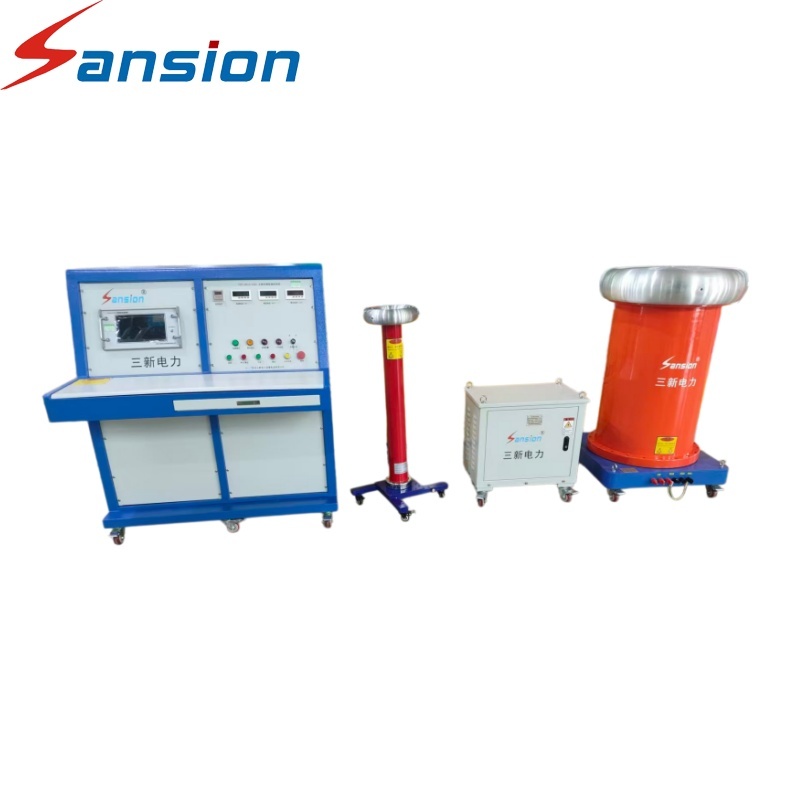

50kVA/150kV Power Frequency PD-Free AC Withstand Test System
For high-voltage equipment, early insulation problems can be difficult to recognize because partial discharge may occur long before a complete insulation breakdown. The 50kVA/150kV Power Frequency PD-Free AC Withstand Test System provides a testing platform for applying power-frequency AC voltage while monitoring weak discharge activity during insulation evaluation.
The system is designed for a wide range of equipment such as transformers, instrument transformers, generators, surge arresters, bushings, GIS, capacitors and switchgear. High-sensitivity signal acquisition supports detection of subtle PD activity, while the built-in adaptive filtering technology helps distinguish useful discharge signals from background electromagnetic noise. This makes the system suitable for high-voltage testing environments where stable data and accurate insulation assessment are important.
Product Parameters
| Parameter |
Value |
| Rated Power |
50 kVA |
| Test Voltage |
150 kV AC |
| Test Mode |
Power Frequency AC Withstand |
| PD Monitoring |
Supported |
| Signal Detection |
High Sensitivity |
| Noise Control |
Adaptive Filtering Algorithm |
| Primary Application |
High-Voltage Insulation Assessment |
| Applicable Objects |
Transformers, Generators, GIS, Switchgear, Capacitors, Bushings, etc. |
Product Advantages
- Intelligent Insulation Assessment: Combines high-voltage withstand testing with monitoring of partial discharge activity.
- Sensitive Fault Indication: Weak PD signals can provide early indications of potential insulation defects.
- Strong Anti-Interference Capability: Adaptive filtering suppresses background electromagnetic noise.
- Stable Measurement: Helps maintain reliable detection performance in complicated electrical environments.
- Comprehensive Equipment Coverage: One testing platform can serve multiple categories of high-voltage apparatus.
Application Scenarios
- High-voltage insulation diagnosis
- Transformer and instrument transformer testing
- Generator insulation evaluation
- GIS and switchgear inspection
- Capacitor and bushing testing
- Substation equipment testing
- Power equipment maintenance and commissioning
FAQ
Q1: What is the main purpose of the system?
A: It is primarily used for power-frequency AC withstand testing with partial discharge detection for high-voltage electrical equipment.
Q2: Why is partial discharge detection useful?
A: Weak PD activity can indicate potential insulation defects before they develop into more serious insulation failures.
Q3: Can it work in environments with electromagnetic interference?
A: The system uses adaptive filtering technology to suppress background noise and improve detection stability in complex electromagnetic environments.
Q4: Which high-voltage equipment is suitable for testing?
A: Suitable applications include transformers, instrument transformers, generators, GIS, switchgear, bushings, capacitors, surge arresters and other high-voltage electrical equipment.
