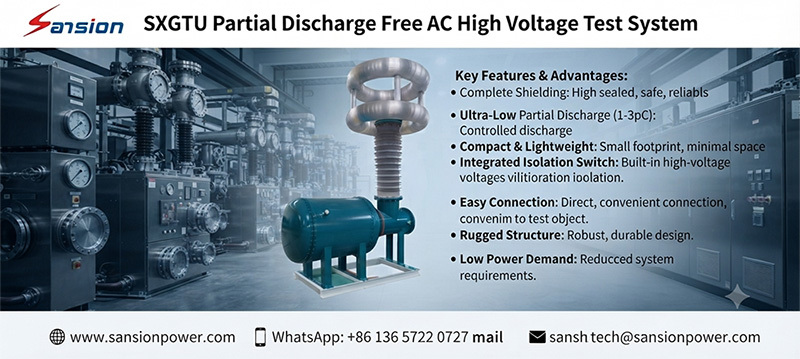

GIS AC Resonant Test System for Partial Discharge and Withstand Voltage Testing, Variable Frequency High Voltage Test Equipment for GIS GIL and EHV

Model Number : SXGTU

Frequency : 50Hz/60Hz

MOQ : 1

Cooling method : Air cooling

Brand Name : Sansion Power

Capacity Range : 50–2000kVA

Delivery Time : 30 working days

Packaging Details : Plywood Case

Certification : CE/SGS/EMS/ISO 9001

System Type : Resonance voltage generation

Payment Terms : L/C,T/T

Power consumption : 500W

Place of Origin : China

Input Voltage : 0.35–10kV

Contact Now

Product Description

The GIS AC Resonant Test System is engineered for high-voltage AC testing of large-capacitance GIS and GIL systems.

The variable-frequency resonant technology is particularly suitable for high-capacitance test objects and can be configured for factory and on-site testing.

Testing Functions

GIS AC withstand test
GIS partial discharge test
GIL AC withstand test
Insulation withstand verification
Variable-frequency resonance
High-voltage measurement
PD detection
Automatic voltage regulation
Test timing
Data recording

Application

Factory Type Testing

For GIS manufacturers performing product development and type tests.

Routine Factory Testing

For production-line or factory acceptance testing.

Site Commissioning

For newly installed GIS substations.

Maintenance Testing

For GIS equipment following major maintenance.

HIGHVOLT, for example, describes variable-frequency AC test systems for GIS routine/type testing, PD measurement and on-site testing, including direct connection to the GIS test object.

FAQ

Q: Can the system be directly connected to GIS?

A: The connection configuration depends on the GIS design and project requirements. Direct flange connection is possible for appropriately designed systems.

Q: What parameters are needed for system selection?

A: GIS rated voltage, test voltage, capacitance, test duration, required frequency range and applicable standard are key parameters.
